Client API section

  • Applies to: All Board Cloud subscriptions

WHAT: Introduction to Client API users

Client API users allow for the configuration and customization of how the Board ecosystem is integrated into other third-party software environments.

Once the initial configuration has been created, the external environment will be able to read and manipulate data from Board and to execute specific operations on its platforms.

For example, through an HTTPS requests, it is possible to obtain lists of Entities, Cubes, Relationships, or Entity members in JSON format. It is also possible to execute a Layout, search for a Capsule, execute a Database procedure, and perform a full text search.

Client API users cannot be imported via CSV file. They can be manually imported from a Board platform, once you associate it with the Subscription Hub.

HOW: Client API configuration

  1. Click on "CLIENT API" and fill in all required fields, marked with a *.
    The Client ID and the client secret are essentially a username and a password that the external client will use to obtain an access token from the Subscription Hub. The request must comply to OAuth2 client credentials flow specifications.
    Once that token has been provided, it'll have to be included in the API requests' header to access Board's resources.

    Tokens are valid for 8400 minutes (140 hours) from creation and will expire automatically after that time. If a Client API user is deleted, any API token created by that user account is deprovisioned at the same time. If a Client API user is only disabled, any API token created by that user account will continue to work until its expiration, but it is not possible to create a new token until the user is enabled again.

  2. From the License dropdown menu, select the License type you'd like to assign to the client API, just like you'd do when adding a new user account.

    The available License types may vary, depending on your Cloud Subscription. To know more about Board Licenses please visit this page.

    When the "Disabled"checkbox is ticked, the external client won't be able to make API requests using the configured credentials and its license will be available to assign to other user accounts.

    Choose the appropriate "Culture" option to apply a specific date and time format to API responses. Leave it blank to apply the default date and time format.
  3. If you are creating the client API to be used with Board's SCIM API service, tick the “enable SCIM endpoint” option.
  4. In the Platform authorization table, select a Role, assign a License type and, if applicable, tick the "Admin" checkbox: if checked, the external client will be able to launch business critical procedures, as per your Board platforms configuration. You will need to set those attributes for each listed Board platform you want to give the external client access to.
    To know more about the Platform authorization table, please see this paragraph.
  5. Set API permissions by ticking the desired checkboxes. You will need to do this for each listed Board platform you want to give the external client access to (see the Board Public APIs section for more information).
  6. Click "SAVE" to create the system user and start using Board's public APIs.

To know more about available APIs, please see the Board Public APIs section and the SCIM API section.



Client APIs overview

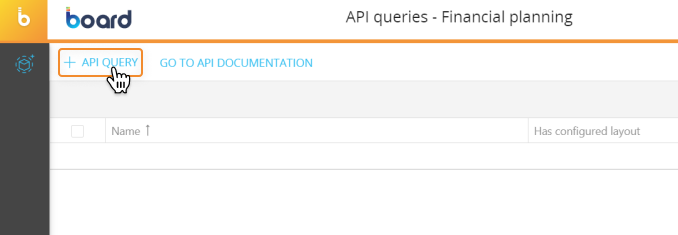

Depending on which version of Board is installed, you will have some or all of the following APIs available. The API Queries have to be configured in all Board platforms, under the "API queries" section of each Data model you want the APIs to work with.

BOARD Public APIs queries configuration

Once you've created the necessary Client API user, an authorization token must be generated before making any request.

The token returned from this request must be used to manage the authentication in the API requests.

The authentication must comply with OAuth2 client credentials flow specifications.

To obtain the authorization token, you need to set the following additional parameters:

  • Grant Type: "Client Credentials"
  • Access Token URL: https://your-subscription-hub-url/connect/token
  • Scope: "public-api"
  • Client Authentication: "Send client credentials in body"

Client API users don't consume any Board license, but Roles applied in the "Platform authorization" table are always respected.



ApiQuery requests limits

ApiQuery requests are free up to 500 requests per day and 10 requests per second. This limit can be increased with an additional license. If you need an increase to your quota, please contact your Board Customer Success Manager or Key Account Manager.
Please note that custom quotas are only available for Cloud subscriptions.



API authorization in Swagger

You can perform an API Client authorization in the Swagger interface, which allows you to test Board public API queries directly from Swagger. The authentication supports only the OAuth2 client credentials flow. Read more about how to do this here.
