Board SCIM API overview

  • Applies to: All Board Cloud subscriptions



This section covers the Board SCIM API service, how it can help and how to get started.



The Board SCIM API service is the Board implementation of the System for Cross-domain Identity Management (SCIM) standard. SCIM is an HTTP-based protocol that makes managing identities in multi-domain and multi-system scenarios easier to support through a standardized service. This API package is integrated into Board's Subscription Hub portal. Read about Client APIs and the SCIM API endpoints for more information.



Board SCIM benefits

SCIM allows Admins to automatically sync user accounts and permissions across multiple applications, ensuring that this information is always up to date and correct. An important benefit of the Board SCIM API service is standardization: with it, we offer accessibility and full operability with other identity management systems, solving many identity maintenance challenges such as record tracking and on- and off-boarding. The Board SCIM API service facilitates secure identity data management and control.

With Board’s SCIM Service APIs, you can:

  • Build integrations with supported identity management tools
  • Automate the management of your users



Board SCIM implementation does not support the management of Client API users created in the Subscription Hub.
Board’s implementation uses version 2.0 of the SCIM standard.



Getting started

When using Board SCIM APIs you should first configure all necessary metadata that correspond to the user and group attributes used in the APIs requests. Data synchronized is stored within Board and can also be manually updated in the Subscription Hub.
For example, you may choose to synchronize a User's familyName, givenName and userName (email login) but not synchronize activeFlag. Alternatively, you may choose to store and synchronize all of that data in your internal systems.
In either case, be aware that changes made in the Subscription Hub will change the data stored in Board.

Depending on how you integrate with the SCIM APIs you may create an unexpected condition. For example, if someone gets married and you change the familyName (Last Name) in the Board Subscription Hub but not in your system of record, depending on how your integration logic is written, that change could be set back to the original familyName.



SCIM Configuration on Board's Subscription Hub

Before users can make requests with the SCIM APIs, the following conditions must be met:

  1. A Client API user must exist and must have the new “enable SCIM endpoint” option turned on. The Client API is required for authentication in the API requests. See the Authentication paragraph below for more information
  2. All metadata corresponding to the user and group attributes used in the APIs requests must already be created. This is done in the User Metadata section of the Subscription Hub: map the metadata fields to the corresponding SCIM attributes with the new "SCIM attribute" drop-down list.

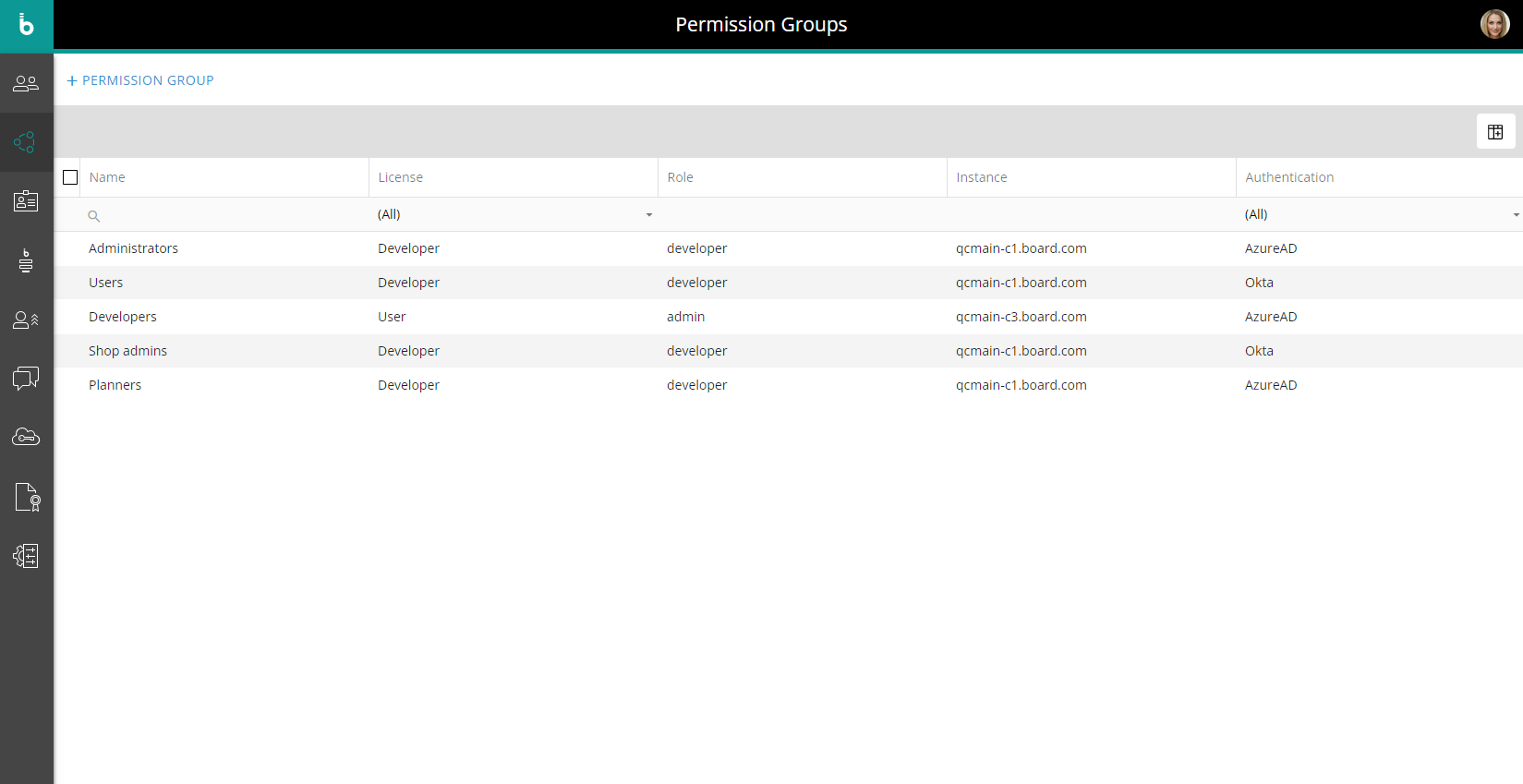

  3. All needed Permission Groups that will be referenced in the APIs must have been created. This is done in the new "Permission Groups" section of the Subscription Hub.

    The configuration of each Permission Group is similar to the configuration of a single user in the Subscription Hub: in the Group configuration panel, you can assign roles and access permissions in a granular way for each Board Platform, as well as assign Subscription Hub administrative authorizations and define specific metadata values.
    All these configurations will be automatically applied to users added to the Group.

    You can also set a default Permission Group: in this case, the configurations and properties defined in that Permission Group will be automatically applied to all new users created in the Subscription Hub from that point on.

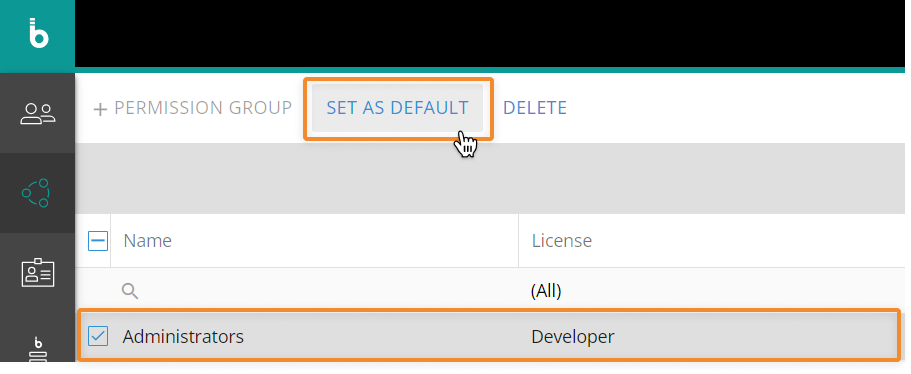

    To set a Permission Group as default, select it in the table and click the "SET AS DEFAULT" button that appears on top of the table:

    To remove a Permission Group as default, select it in the table and click the "REMOVE DEFAULT" button that appears on top of the table, or define a new default Permission Group.

    There can be only one Permission Group set as default.
    If a user is created via a SCIM request and no default Permission Group is set in the Subscription Hub (or the default Permission Group is disabled), the account will be created with the "Board authentication" authentication type, but the email needed to verify the associated email address and set a password will not be sent automatically (as is the case for manually created users).
    The email needed to verify the associated email address and set a password is sent automatically when:
    - Users are added to a Permission Group which is not disabled and has the authentication type set to "Board authentication". This is also the case for default Permission Groups
    - The authentication type of a user or a non-empty Permission Group is changed from any setting to "Board authentication".



Authentication

To obtain an authentication token, you have to send a request which must be compliant with OAuth2 client credentials flow specifications.

To obtain the necessary authentication token, proceed as follows:

  1. Create a Client API user as explained here. The Client API user must have the new “enable SCIM endpoint” option turned on
  2. Once you have created the necessary Client API user, an authorization token must be generated before making any request. The token returned from this request must be used to manage the authentication in the API requests.
    The authentication must comply with OAuth2 client credentials flow specifications.

    To obtain the authorization token, you need to set the following additional parameters:

    • Grant Type: "Client Credentials"
    • Access Token URL: https://your-subscription-hub-url/connect/token
    • Scope: "board-scim"
    • Client Authentication: "Send client credentials in body"

  3. Pass the token to the SCIM API through a request as shown below.


Example

GET https://your-subscription-hub-url/scim/Users/<user id here>



Request header

Header Details

Authorization: Bearer <id token from step 2>

 In the Authorization header value, place the prefix Bearer followed by a space and then the ID Token



Request parameters

none



Curl example

curl -X GET -H 'Authorization: Bearer <id token here>'
https://your-subscription-hub-url/scim/Users/<user id here>



Response body

If your Authentication passes, you'll receive the response for the API you called.
