Board Public APIs

  • Applies to: All Board Cloud subscriptions



This section gives an overview of Board's public APIs. To find out more about Board's APIs, read the Client API section, and about the Board SCIM API.

Unless otherwise indicated below, query parameters are case sensitive.
OAuth 2.0 Authorization Code with PKCE flow specifications are also supported for the authentication in API requests.

  • ApiQuery: returns the result of the specified query. It is possible to add querystring parameters for the select.
    • Submission method: GET
    • Syntax: /public/{dbName}/query/{queryName}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string
      queryName Required API query name path string
      json Accepted Value: full
      (Optional)
      Set the parameter to full to repeat keys for each returned record query string

      The queryName parameter value must match an existing API query name in the specified database.

    • Examples:

      • Base

        ?{entity_name}={member_code}
        ?year=2012


        Result: returns all values from 2012

      • Multiple
        ?{entity_name}={member_code}&{entity_name}={member_code}
        ?year=2012&city=IT01


        Result: returns all values from 2012 and city with code IT01

      • List
        ?{entity_name}={member_code},{member_code},{member_code}
        ?year=2012,2017,2019


        Result: returns all values from years 2012, 2017 and 2019

      • Range
        ?{entity_name}={member_code}..{member_code}
        ?year=2015..2019


        Result: returns all values from years 2015 to 2019

      • Escape
        ?{entity_name}="{member_code}"
        ?city="IT01"


        Result: returns all values from city with code IT01

      • Json
        ?json=full

        Result: repeats all keys for each returned record, instead of listing all keys once at the beginning of the returned dataset


  • Schema: returns a list of entities, of entity members or cubes for a specified database.
    • Submission method: GET
    • Syntax: /public/{dbName}/schema/Entities
    • Parameter
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string
      format Optional The format of the response: tree or flat query string
    • Syntax: /public/{dbName}/schema/Entities/{name}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string
      name Required Entity name path string
      skip Optional Bypass a specified number of search results then return the remaining results query integer
      take Optional Specify the number of search results to return query integer
      searchString Optional Text query. Case insensitive query string

    • Syntax: /public/{dbName}/schema/Cubes
    • Parameters
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string



  • Procedure: starts the execution of a specified Procedure and returns the Procedure status after its execution.
    • Submission method: POST
    • Syntax: /public/{dbName}/procedure/Execute/{procedureName}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string
      procedureName Required Procedure name path string

      It is possible to trigger the execution of a Procedure with a selection added through query string parameters: the selection will define the scope of the Procedure, just as it happens when the Procedure is triggered from a Capsule Screen which has an active Selection applied.

    • Examples:

      • Base

        ?{entity_name}={member_code}
        ?year=2012


        Result: the Procedure is executed considering the year 2012

      • Multiple
        ?{entity_name}={member_code}&{entity_name}={member_code}
        ?year=2012&city=IT01



        Result: the Procedure is executed considering the year 2012 and the city code IT01

      • List
        ?{entity_name}={member_code},{member_code},{member_code}
        ?year=2012,2017,2019


        Result: the Procedure is executed considering the years 2012, 2017 and 2019

      • Range
        ?{entity_name}={member_code}..{member_code}
        ?year=2015..2019


        Result: the Procedure is executed considering the years 2015 to 2019

      • Escape
        ?{entity_name}="{member_code}"
        ?city="IT01"


        Result: the Procedure is executed considering the city with code IT01


    • Submission method: GET
    • Syntax: /public/{dbName}/procedure/Status/{sessionId}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      dbName Required Database name path string
      sessionId Required The Session id value included in the response of the execute procedure query  path string

    • Response types

      • Procedure status: running.
        Response:
        {
          "status": 1,
          "message": "Running"
        }


      • Procedure status: stopped.
        Response:
        {
          "status": 0,
          "message": "Stopped"
        }



  • Capsule: returns the Capsule tree (with folders, if present) o a specific Capsule by name. By passing a username as a query parameter, the endpoint will return results based on that user's specific authorizations.
    • Submission method: GET
    • Syntax: /public/capsules/{capsuleName}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      capsuleName Required Capsule name path string
      username Optional Username query string



  • FullTextSearch: returns the results of a Full Text Search in the entire Platform (the search is executed in Capsules and Presentations, but it will return also Data models, procedures and anything that matches or contains the search query).
    By passing a username as a query parameter, the endpoint will return results based on that user's specific authorizations.
    • Submission method: GET
    • Syntax: /public/search/{textToSearch}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      textToSearch Required Text search query path string
      username Optional Username query string


  • Presentations: returns a list of available Presentations, metadata about a specific Presentation, the list of Slides from a specific Presentation, metadata about a specific Slide, a list of Screen Objects/Layout titles from a specific Slide, values from a single Layout. By passing a username as a query parameter, the endpoint will return results based on that user's specific authorizations.
    • Submission method: GET
    • Syntax: /public/presentations/{name}
    • Parameters
      Parameter Value Description Parameter Type Data Type
      name Optional The Presentation name path string
      username Optional The owner of the Presentation query string
    • Syntax: /public/presentations/{name}/slides/{slideName}
    • Submission method: GET
    • Parameters
      Parameter Value Description Parameter Type Data Type
      name Required The Presentation name path string
      slideName Optional The Slide name path string
      username Optional The owner of the Presentation query string


    • Syntax: /public/presentations/{name}/slides/{slideName}/toolboxes
    • Submission method: GET
    • Parameters
      Parameter Value Description Parameter Type Data Type
      name Required The Presentation name path string
      slideName Required The Slide name path string
      username Optional The owner of the Presentation query string


    • Syntax: /public/presentations/{name}/slides/{slideName}/toolbox/{toolboxName}
    • Submission method: GET
    • Parameters
      Parameter Value Description Parameter Type Data Type
      name Required The Presentation name path string
      slideName Required The Slide name path string
      toolboxName Required The Toolbox name path string
      username Optional The owner of the Presentation query string

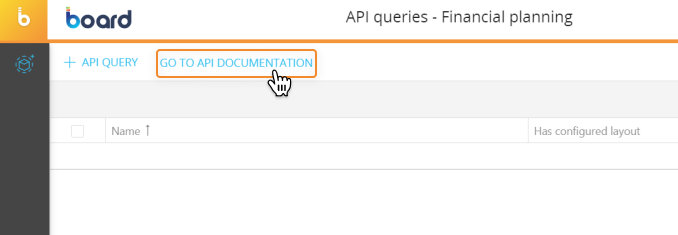

The most up-to-date technical documentation is available right in each active Board platform. To access it, head to the desired platform, click on "Data model" from the main menu, select any data model you have in place, and click on "API queries". Once there, click on "GO TO API DOCUMENTATION".

The API DOCUMENTATION in Board



Board has a timeout of 100 seconds. If the remote API server does not return a response within 100 seconds, Board closes the connection.

By default, the following quotas apply to all Public API calls:
- 500 requests per day (this limit can be increased with an additional license. If you need an increase to your quota, please contact your Board Customer Success Manager or Key Account Manager)
- 10 requests per second. If the remote API server does not return a response within 100 seconds, Board closes the connection.
