Security filters section

This section is about the Security Filters section of the Database security page and how to add security selections and use custom selection scripts.

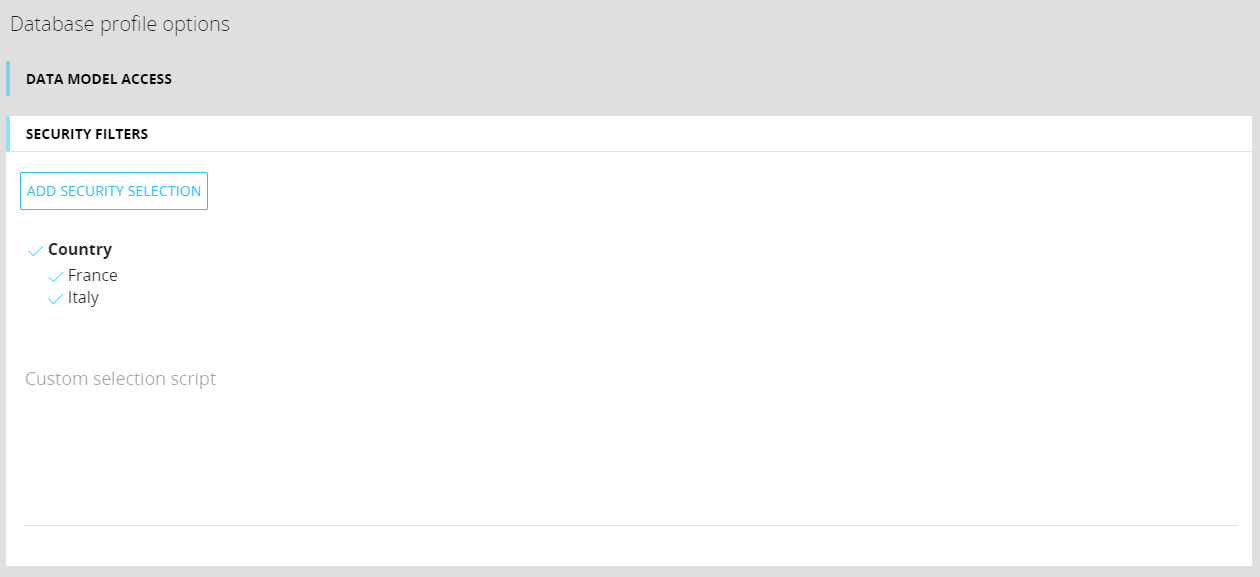

In the Security Filters section of the Database security page, you can configure and apply security selections to the security profile. These are filters you can configure when creating or editing a security profile and that allow you to restrict access to data in Cubes or Entities, both in the Capsules/Presentations environment and in the Data model designer space. You can do this by applying a selection to the Entity members associated with the desired Cube or feature: users affected by these selection will only have access to values and data within the applied selection.



Add security selection

To add a security selection, open the “DATA SELECTION ” menu and click on “ADD SECURITY SELECTION” to open the Select window and configure a security selection by choosing the desired Entity members that you want the security profile to have access to. Only data related to the selected Entity members will be visible to the user associated with this security profile, as described in this paragraph.

For example, if the “France” member of the “Country” Entity is selected, a user associated with the security profile with this security filter applied will only see data and values related to the “France” member.



Custom Selection Scripts

Here you can also add a Custom selection script that allows you to manually write a selection command script to automatically filter data displayed in Board Platforms based on Entity members defined in the script.



An example of the syntax for this command is as follows: SELECT EntityName=Member1,Member2,Member3,etc.
Example: SELECT Country=France,Italy



With the @var function, you can retrieve a member code from metadata variables using the syntax: SELECT EntityName=@var(metadata)

Example: SELECT Country=@var(country)



To add a Custom selection script, open the “DATA SELECTION ” menu and enter a Custom selection script in the “Custom selection script” field by using the following syntax: SELECT EntityName=Member1,Member2,Member3,etc. (i.e. SELECT Country=France,Italy). See Add and manage User metadata to use selection scripts based on custom user metadata defined in the Subscription Hub.

To define the desired members, you must enter their member code in the script.



Typically the Custom selection script is used to dynamically filter data displayed in Board for each user by using Substitution formulas or Metadata variables. For example, you can configure a “Country” Metadata variable, enter the country of each user in the Subscription Hub, and then use it in the Custom selection script so that users can access data only related to their country. This way, the user’s access to data is dynamically filtered by their country - based on their “Country” Metadata value -, rather than creating multiple security profiles with fixed country selections and associating those profiles with multiple user Roles.
See Add and manage User metadata to use selection scripts based on custom user metadata defined in the Subscription Hub.





Add special Select options for Entities with an unbalanced hierarchy

The special Select options that you can use in the Select window on an Entity member of an unbalanced hierarchy, are also available in the Custom selection scripts that you can configure under the "SECURITY FILTERS" menu in a Database security profile or under the "SELECT" menu in a Role.

The Selection script syntax for the Entities with an unbalanced hierarchy is the following:

Select EntityName = FunctionName(MemberCode1, MemberCode2;InclusiveBoolean;HierarchyLevel;IncludeNonLeafBoolean)

You can find the explanation for each syntax parameter below:

• EntityName. This parameter is the name of the Entity on which you want to apply a selection
• FunctionName. This parameter is the name of the special Select option you want to apply to a member of an unbalanced hierarchy. The options can be the following:
  • Ancestors
  • Descendants
  • Parent
  • Leaves
  • Children

  See this page for more information about these functions

• MemberCode. This parameter is the code of the Entity member that you want to use for the selection. You can add as many member codes as you like by using the comma character as a separator

  You must use double quotes in the case where a member code contains spaces or special characters (i.e. Select Entity = FunctionName(MemberCode1,"MemberCode,;{}[]@=()2"...). This means that you should not use the double quotes character as part of an Entity name or Entity member code since it is a reserved character for the Custom selection script syntax.

• InclusiveBoolean. This parameter is a boolean (True or False) that you can use to include or exclude the MemberCode parameters used in the selection. For example, if you have an Entity with an unbalanced hierarchy where the members are FatherMember -> ChildMember1 and ChildMember2 and you perform the following selection: Select Entity = Descendant(FatherMember;false) then the applied selection will include data only related to ChildMember1 and ChildMember2, but not FatherMember

  This parameter is true by default, therefore the MemberCode parameters are included in the selection unless specified otherwise.

• (Only applicable to Ancestors and Descendants functions) HierarchyLevel. This parameter is a number value that you can use to specify the levels of the hierarchy that will be included in the selection. For example, if you have a hierarchy of 6 levels and you enter the number "3" as the HierarchyLevel parameter, then the selection will include data only related to ancestor or descendant members that are within 3 levels away from the selected member in the hierarchy

  The default value of this parameter is "0", which equals the "ALL" option in the Select window, and therefore includes all levels of the hierarchy.

• (Only applicable to Ancestors and Descendants functions) IncludeNonLeafBoolean. This parameter is a boolean (True or False) that you can use to include or exclude non-leaf members of the Entity on which you are applying the selection

  This parameter is true by default, therefore the non-leaf members of the Entity are included in the selection unless specified otherwise.



Here are a couple of important notes to keep in mind regarding the special Select options:

• Like in the Select window, you can add multiple special Select commands in the same script, like in the following example:

  Select EntityName = FunctionName1(MemberCode1;InclusiveBoolean...)
  Select EntityName = FunctionName2(MemberCode2;InclusiveBoolean...)

  In the case of multiple Select commands, Board will unite all the selection script commands and include data related to members that appear in at least one of the script commands.

• You can add multiple functions to the same selection script command by using the comma character between functions, and you can also use the same function more than once on the same Entity, like in the following example:

  Select EntityName = FunctionName1(MemberCode2;InclusiveBoolean...), FunctionName2(MemberCode2;InclusiveBoolean...), FunctionName3(MemberCode2;InclusiveBoolean...)

• You can retrieve a member code from metadata variables using the @var function, like in the following example:

  Select EntityName = FunctionName(@var(Metadata);InclusiveBoolean)

• Applying a special Select option to an Entity with an unbalanced hierarchy, might cause the hierarchy of the selection result to look different from the original hierarchy depending on the configuration of the selection script. Consider the following example:



  In this case, applying the selection script, like in the image above, to the Entity with an unbalanced hierarchy, causes the displayed hierarchy to appear differently from the original. This is correctly displayed since, for example in this specific case, the Leaves function selects leaf members ("Child-1", "Child-2", "Child-3.1" and "Child-3.2" members) that are descendants of the selected member ("Father" member) and excludes Nodes ("Child-3" member) from the selection. Therefore the position of the node descendants is displayed in a different order in the hierarchy when this type of selection is applied.





Select Entity based on Cube feature

The "Select Entity based on Cube" Dynamic selection feature in the SECURITY FILTERS section can be used as a security selection filter in the "SECURITY FILTERS" menu in a Database security profile and under the "SELECT" menu in a Role. This gives administrators much better flexibility and efficiency in dynamically managing user access to the data of a Platform.

This feature applies a selection based on Entity members that have a non-0 value on the chosen Cube. The security filters are applied in the following order, from top to bottom:

1. Security selections
2. Custom selection scripts
3. Dynamic selections

Board applies the selections in a funnel-like way, narrowing the selection down after applying each selection feature. For example, consider the configuration of the following selections:

Order of Security filter Selections based on Cube

The selections will be applied in the following order:

1. The security selections will be applied first, therefore denying users access to data related to all countries
2. The custom selection scripts will be applied second, therefore granting users access to data related to their country, based on the value of the "Country" metadata of each user, and the member "Food" of the "Product Group" Entity.
3. The dynamic selection will be applied last, therefore granting users access to data related to the members of the "Product Group" Entity members that have a non-0 value on the "Product group by country" Cube

Given the data set in the image below, if the "country" metadata value of a user is "Italy", then each selection filter above is applied in the following way:

Example of Selections to be applied to data:

The various selections would be applied singularly to the data highlighted in the image above. In this case, since the selections are applied together in the order described above, a user associated with a security profile with the configurations above will only have access to the following data:



Example of actual result after Selections are applied:





Add a Dynamic selection to a Security filter based on a Cube

To add a Dynamic selection in the security selection filters, proceed as follows:

1. Open the "SECURITY FILTERS" menu in the Database security page

   You can also add a Dynamic selection from the "SELECT" menu and then the desired Data model menu in the Roles page

2. Select the desired Entity from the "Entity" drop-down list
3. Select the desired Cube from the "Cube" drop-down list
4. Click the blue check mark on the right to add the Dynamic selection

Here are a couple of important notes to keep in mind regarding the Dynamic selections:
- You can add multiple Dynamic selections. In this case, Board will apply them in sequential order from top to bottom, narrowing the selection down after each execution. You can change the order of the Dynamic selections by dragging and dropping them as desired
- You can add multiple Dynamic selections on the same Entity and/or the same Cube
- The Dynamic selections are executed in keep mode
- In the case where an Entity that is already configured in a Dynamic selection is deleted, Board will deny access to data related to the members of that Entity
- In the case where the Relationships of an Entity that is already configured in a Dynamic selection are edited causing the Cube dimensioned by that entity to become less aggregate, Board will deny access to data related to the members of that Entity
- In the case where an Entity that is already configured in a Dynamic selection is removed from the dimensions of the Cube configured in that Dynamic selection, Board will deny access to data related to the members of that Entity
-  In the case of Database security profiles, the selections, including the Dynamic selection, are applied before the Cube Visibility rules

To better understand the order in which Board executes selections on each Screen, please refer to the About the Select page.
