The Capsule Browser

Once logged in, you will land on the Capsules Page.

This page is arranged in tiles, sorted with alphanumeric order. The Capsule Browser is a responsive page, tiles automatically adapt to different resolutions and browsers resize.

Folders and capsules are sorted together.

Folders are marked with the icon

Capsules are marked with the icon

Capsule icon can be changed for each capsule.

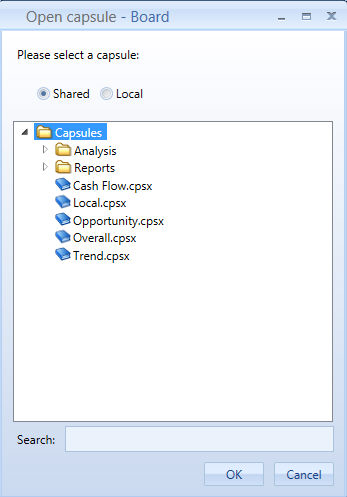

For example, if a Client capsule browser looks like this:

The resulting web Capsule Browser will look like this:

Please note that in the classical client browser folders are listed at the top and then capsules are listed below, in the web capsule browser capsules and folders are listed together.

You can find the classic treeview of the capsule folder on the left

You may search a capsule using the search box at the top (it will search capsules in every subfolder).

To come back to the parent folders you can use the path right above the tiles.

Every capsules has an Hamburger menu on top right

Clicking on the Hamburger menu you will find 5 options:

The star button is used to add a capsule to favorites
The "i" sign will tooltip capsules information
The Screen symbol will pop-up the screen list
"+" and "-" will change the size of the tile.

Tiles sizes and favorites options are saved for each user, if a user logs in and changes one of these settings, next time he will log in settings will be kept. Other users are not affected by this.

Capsules Web Tile

Capsule Tiles can be customized using the Board Client.

The capsule web tile configuration can be found under the capsule properties menu.

The configurator shows a preview of the tile in the four formats, from smallest to largest: Small, Medium, Wide, Large.

You can configure an Icon for the capsule Tile, a background color, a footer, a sparkline and a select.

Icon: an image that will be shown at bottom right of the tile, it will be visible for every format.
Background color: The background color of the tile, it will affect every format. If an alert for the footer is defined small format will ignore background color.
Footer: A configurable label, you can define a layout to show a Footer Title and a value. An alert on the layout can be defined as well. Footer Value and Title are shown in wide and large formats, background alerts are shown in every format.
Sparkline: A sparkline chart configurable via layout. This chart will be a line if the row entity is a time entity, a bar chart otherwise,markers will tooltip the value and only one series is allowed. The layout title will be shown as well as sparkline title. Only Large Format will show the Sparkline
Select: Defines a select for footer and Sparkline.

All Formats except small will also show the capsule title.

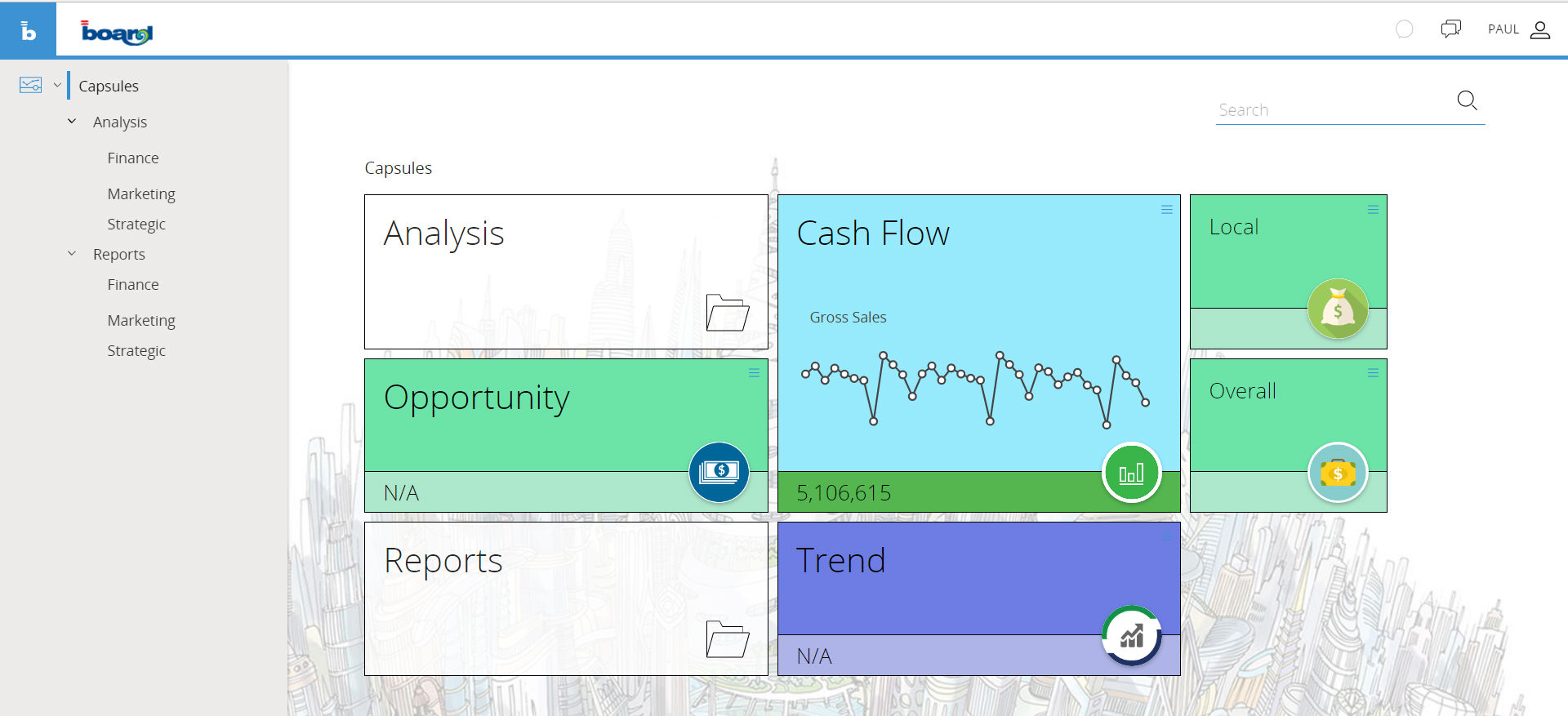

Once you configure your capsules tiles the Web browser will appear like this:
