Block Option : Appearance

Different Options are available.

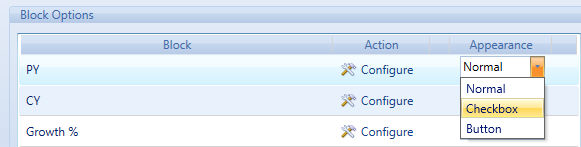

Select from the drop-down list the Appearance Option you wish.






Normal : the cell body is normally visualized. Values can be Number, Text, Picture ecc.



Checkbox : if the  cell content is not zero a ticked check-box is shown



Button : On Mouse Overing a "Clicking Hand" icon is visualized suggesting to launch a procedure



Note

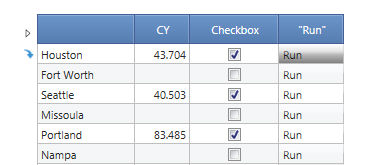

The Check-Box Format can be meaningfully used in Data Entry mode :

> Ticking an empty Check-Box writes a value = 1 in the cell

> Un-Ticking a Check-Box writes a value = 0 in the cell independently from the existing  value that can be greater than 1.
